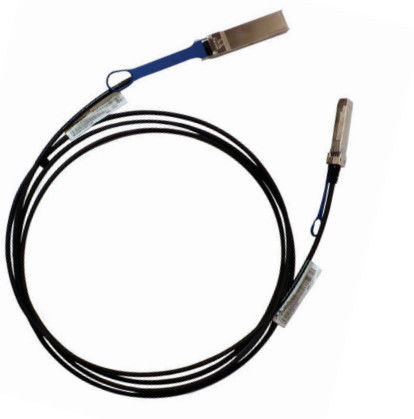

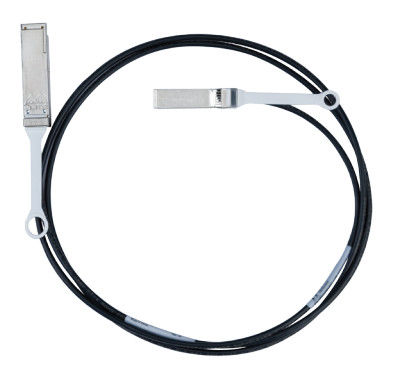

Mellanox DAC Direct Attach Fiber Cable 40G MC2309130-002 QSFP+ To SFP+ 10GBase-CU
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MC2309130-002 |
| Document: | MC2309130-002.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Technology: | Ethernet |
| Lead Time: | According To Stock | Length: | 2M |
| Speed Description: | 10-Gigabit | Active Or Passive: | Passive |
| Highlight: | DAC direct attach fiber cable,TAA direct attach fiber cable,DAC 40g qsfp+ cable |
||
Product Description
LinkX™ Hybrid Passive Copper QSFP to SFP+ 10Gb/s Cable - MC2309130-002
1. Product Overview
The Mellanox LinkX™ MC2309130-002 is a high-performance hybrid passive copper cable designed to connect QSFP and SFP+ ports at 10Gb/s data rates. It offers a reliable, power-efficient alternative to active optical cables, making it ideal for data center and high-performance computing environments. This cable is engineered for superior signal integrity and durability, ensuring seamless integration and long-term performance.
2. Key Characteristics
- Compliant with SFF-8431 and SFF-8436 standards
- Supports data rates up to 10.5 Gb/s per lane
- Low power consumption and high efficiency
- Secure latching mechanism for reliable connections
- RoHS-5 compliant and backed by a 1-year warranty
3. Technology & Standards
The cable complies with industry standards including InfiniBand Architecture, QSFP MSA SFF-8436, and SFP+ MSA SFF-8431. It utilizes advanced signal processing to minimize insertion loss and crosstalk, ensuring a Bit Error Rate (BER) of less than 10-15.
4. Working Principle
The passive copper cable transmits electrical signals directly between the QSFP and SFP+ interfaces without signal amplification. It relies on high-quality copper conductors and impedance-matched design to maintain signal integrity over distances up to 2 meters.
5. Applications
Ideal for data centers, enterprise networks, and high-performance computing clusters. Commonly used to connect switches, routers, and servers with mixed QSFP and SFP+ interfaces.
6. Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Reach @ 10Gb/s | 2 | m |
| AWG | 30 | - |
| Cable Diameter | 4.5 | mm |
| Bend Radius | 25 | mm |
| Operating Temperature | 0 to 70 | °C |
7. Advantages
- Lower power consumption compared to active optical cables
- Superior signal integrity with minimal BER
- Cost-effective solution for short-range connections
- 100% tested for compatibility with Mellanox devices
8. Service & Support
All cables come with a 1-year limited warranty. Technical support and customer service are available 24/7. Bulk orders are supported with competitive pricing and fast delivery.
9. Frequently Asked Questions
Q: What is the maximum distance supported?
A: The MC2309130-002 supports up to 2 meters at 10Gb/s.
Q: Is this cable compatible with non-Mellanox devices?
A: While optimized for Mellanox, it is standards-compliant and should work with other brands.
Q: Does it require external power?
A: No, it is a passive copper cable and does not need external power.
10. Precautions
- Do not bend beyond the minimum sustained bend radius of 25 mm.
- Ensure operating temperature remains within 0°C to 70°C.
- Verify compatibility with target devices before installation.
