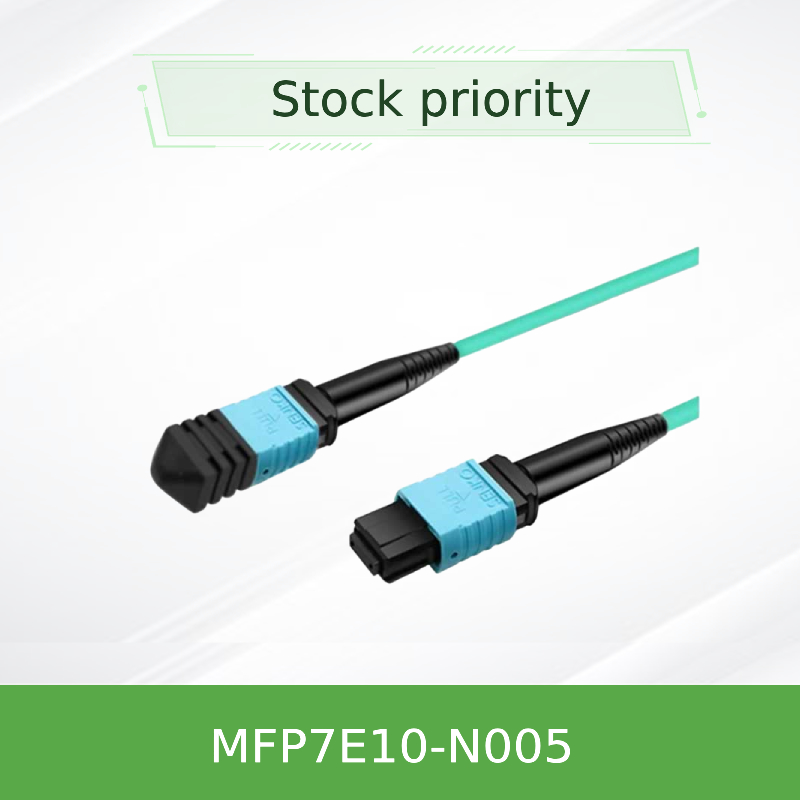

Mellanox cable MFP7E10-N005 MPO-12 APC to MPO-12 APC Multimode Optical Fiber Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N005 (980-9I73V-000005) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Product Model: | MFP7E10-N005 | Length: | 5 Meters |
|---|---|---|---|
| Fiber Type: | Multimode OM4 | Connectors: | MPO-12/APC (Female To Female) |
| Insertion Loss: | ≤ 0.35 + 0.0004 × L DB | Return Loss: | ≥ 35 DB |
| Operating Temperature: | 0°C To 70°C | Jacket Material: | LSZH-OFNR |
| Highlight: | Active Optical Mellanox DAC Cable,40G Mellanox DAC Cable,Mellanox 40g qsfp+ cable |
||
Product Description
NVIDIA MFP7E10-N005 MPO-12 APC to MPO-12 APC Multimode Optical Fiber Cable
Product Overview
The NVIDIA MFP7E10-N005 is a high-performance passive optical fiber cable designed for 400G InfiniBand and Ethernet applications. This 5-meter multimode cable features MPO-12 APC connectors on both ends, ensuring low back reflection and superior signal integrity. It is ideal for connecting switches, adapters, and DPUs in high-speed data centers.
Key Features
- MPO-12 APC to MPO-12 APC connectors with angled polish for minimal reflection
- Supports InfiniBand NDR, Ethernet, and NVLink protocols
- 50/125 µm multimode fibers (OM4 for lengths >30m)
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety
- Type-B crossover fiber mapping for direct transceiver connectivity
Technology & Standards
This optical fiber cable complies with IEC 61754-7 and ANSI/TIA/EIA 604-5-199 standards. It uses APC (Angled Physical Contact) polishing to reduce optical back reflection, ensuring reliable performance in high-speed data environments.
Working Principle
The cable utilizes 8 active fibers in a crossover (Type-B) configuration. Transmit lanes from one end are connected to receive lanes on the opposite end, enabling direct communication between transceivers without additional hardware.
Applications
- Data center spine-leaf architecture
- High-performance computing (HPC) clusters
- Cloud infrastructure and storage area networks (SAN)
- AI and machine learning workloads
Specifications
| Parameter | Value |
|---|---|
| Product Model | MFP7E10-N005 |
| Length | 5 meters |
| Fiber Type | Multimode OM4 |
| Connectors | MPO-12/APC (Female to Female) |
| Insertion Loss | ≤ 0.35 + 0.0004 × L dB |
| Return Loss | ≥ 35 dB |
| Operating Temperature | 0°C to 70°C |
| Jacket Material | LSZH-OFNR |
Advantages
- Superior signal integrity with APC connectors
- Wide compatibility with NVIDIA transceivers and switches
- Robust construction with LSZH jacket for safety
- Easy installation with push-pull latching mechanism
Service & Support
We offer 24/7 technical support, worldwide shipping, and a standard warranty. Custom length options and bulk pricing are available.
FAQ
Q: Can this cable be used with UPC connectors?
A: No, MPO-12/APC connectors are not compatible with MPO-12/UPC due to different polishing angles.
Q: What is the maximum supported length?
A: The cable supports up to 50 meters with multimode fiber.
Q: Is this fiber cable compatible with ConnectX-7 adapters?
A: Yes, it is designed to work with ConnectX-7 and BlueField-3 DPUs.
Precautions
- Do not mix fiber types in twin-port transceivers.
- Always clean connectors before installation.
- Avoid bending beyond 30 mm radius.
- Store in a dry environment between -40°C to 85°C.
